Garage UI - Web Dashboard for Garage S3 Storage

A modern web interface to manage Garage object storage clusters. Browse buckets, manage access keys, monitor your cluster, all from your browser.

---

Features

• Bucket management - create, configure, and browse buckets with drag-and-drop file uploads
• Access key management - create keys, assign per-bucket permissions

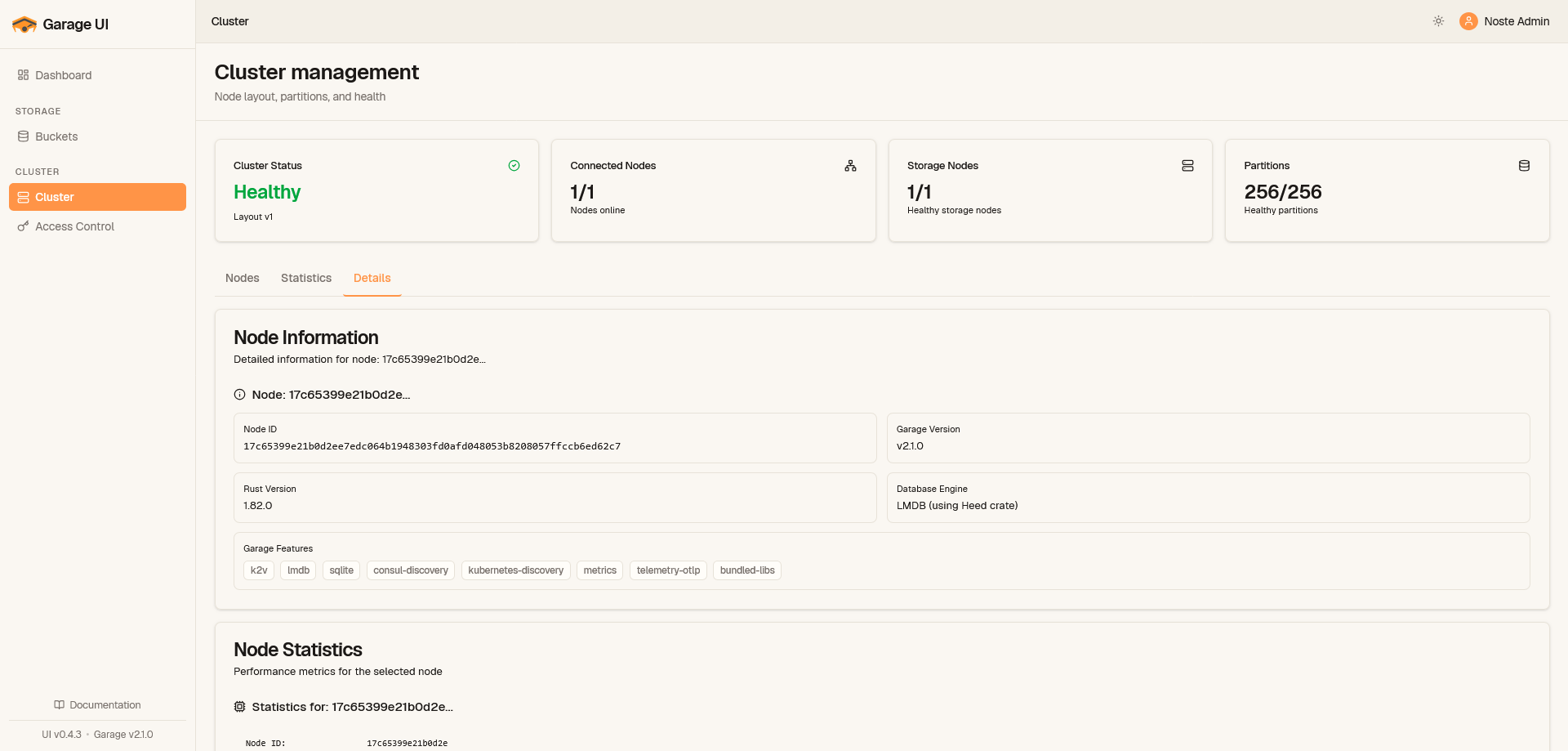

• Cluster overview - monitor node status, layout configuration, and storage usage
• Flexible authentication - no auth, basic credentials, or OIDC (Keycloak, Authentik, etc.)
• Multi-user access control - optional OIDC-team-based permissions, see docs/access-control.md
• Easy deployment - single Docker image or Helm chart, configure with one YAML file
• Preview common file types - images, video, PDF, and text without downloading

Quick Start

Prerequisites

• Docker & Docker Compose
• A running Garage cluster (v2.1.0+) - setup guide if you need one

1. Clone & Configure

git clone https://github.com/Noooste/garage-ui.git
cd garage-ui
cp config.example.yaml config.yaml

Edit config.yaml with your Garage endpoints and admin token (from garage.toml).

2. Start

docker compose up -d garage-ui

Access at http://localhost:8080

Deployment

Docker

docker run -d -p 8080:8080 \
  -v $(pwd)/config.yaml:/app/config.yaml \
  noooste/garage-ui:latest

Kubernetes

helm repo add garage-ui https://helm.noste.dev/
helm install garage-ui garage-ui/garage-ui \
  --set garage.endpoint=http://garage:3900 \
  --set garage.adminEndpoint=http://garage:3903 \
  --set garage.adminToken=your-token

The chart creates a ClusterIP service on port 80. To try it out before setting up an ingress:

kubectl port-forward svc/garage-ui 8080:80

Then open http://localhost:8080

Reusing your garage.toml

If you already have a running Garage instance, you can point Garage UI straight at your garage.toml and skip config.yaml entirely:

./garage-ui --garage-toml /etc/garage.toml

Garage UI reads the S3 endpoint, admin endpoint, admin token, and S3 region straight from the TOML file. When no authentication method is explicitly configured, token auth auto-enables: the login page asks for the Garage admin token, giving you a login wall with zero extra config.

Bind address handling: Wildcard addresses like 0.0.0.0 or [::] are converted to 127.0.0.1 so the UI can reach Garage on localhost. Inside a container this won't work, so override the endpoints explicitly with environment variables or a config file.

Docker:

docker run -d -p 8080:8080 \
  -v /etc/garage.toml:/etc/garage.toml:ro \
  -e GARAGE_UI_GARAGE_TOML=/etc/garage.toml \
  -e GARAGE_UI_GARAGE_ENDPOINT=http://garage:3900 \
  -e GARAGE_UI_GARAGE_ADMIN_ENDPOINT=http://garage:3903 \
  noooste/garage-ui:latest

The endpoint overrides are needed because the container cannot reach 127.0.0.1 on the host.

Combining flags: Use --garage-toml for Garage connection values and --config for everything else (auth, CORS, logging, etc.):

./garage-ui --garage-toml /etc/garage.toml --config config.yaml

Precedence order (highest wins): built-in defaults < garage.toml < config.yaml < environment variables.

Configuration

Minimum required config:

server:
  port: 8080

garage:
  endpoint: "http://garage:3900"
  admin_endpoint: "http://garage:3903"
  admin_token: "your-admin-token"
  region: "garage"

Server bind host is configured by server.host (default: ::). IPv6 literals like :: and ::1 are supported.

server:
  host: "::" # IPv6 wildcard (dual-stack-preferred)
  port: 8080

If your environment needs explicit IPv4-only binding, set server.host: "0.0.0.0".

See config.example.yaml for all options including authentication, CORS, and logging.

Environment Variables

Override any config value with GARAGE_UI_ prefix:

GARAGE_UI_SERVER_PORT=8080
GARAGE_UI_GARAGE_ENDPOINT=http://garage:3900
GARAGE_UI_GARAGE_ADMIN_TOKEN=your-token

Loading sensitive values from files (_FILE suffix)

For Docker and Kubernetes secrets, sensitive env vars can be read from files instead of plain values. Set {VAR}_FILE=/path/to/file and garage-ui uses the file's contents (trailing CR/LF trimmed) as the value. If both {VAR} and {VAR}_FILE are set, _FILE wins and a warning is logged. A missing or unreadable file stops startup.

Supported vars:

• GARAGE_UI_GARAGE_ADMIN_TOKEN_FILE
• GARAGE_UI_AUTH_ADMIN_USERNAME_FILE
• GARAGE_UI_AUTH_ADMIN_PASSWORD_FILE
• GARAGE_UI_AUTH_JWT_PRIVATE_KEY_FILE
• GARAGE_UI_AUTH_OIDC_CLIENT_ID_FILE
• GARAGE_UI_AUTH_OIDC_CLIENT_SECRET_FILE

Example with Docker Compose secrets:

services:
  garage-ui:
    image: noooste/garage-ui:latest
    environment:
      GARAGE_UI_AUTH_ADMIN_PASSWORD_FILE: /run/secrets/admin_password
    secrets:
      - admin_password

secrets:
  admin_password:
    file: ./admin_password.txt

This matches the convention used by the official Postgres and MySQL Docker images. Helm users don't need it; the chart already injects secrets via existingSecret references.

Garage Configuration

Garage UI requires these settings in your garage.toml:

# Admin API (required for Garage UI)
[admin]
api_bind_addr = "0.0.0.0:3903"  # Default: 127.0.0.1:3903
admin_token = "your-admin-token" # Generate with: openssl rand -base64 32

# S3 API
[s3_api]
s3_region = "garage"             # Default: "garage"
api_bind_addr = "[::]:3900"      # Default: 127.0.0.1:3900

Important: The admin_token and s3_region in garage.toml must match your Garage UI config.yaml.

For complete Garage configuration, see the official documentation.

Development

Backend (Go 1.25+):

cd backend
go run main.go --config ../config.yaml

Frontend (Node.js 25+):

cd frontend
npm install
npm run dev

API docs: http://localhost:8080/api/v1/

Troubleshooting

Connection failed:

curl http://localhost:3903/status -H "Authorization: Bearer your-token"

Enable debug logs:

logging:
  level: "debug"
  format: "text"  # or "json"

Roadmap

Roughly ordered by value. Open an issue to push something up the list.

• Fine-grained access control: OIDC teams with per-bucket-prefix permissions, see docs/access-control.md
• Object search: recursive substring search across a bucket
• Bucket quotas: size and object count limits from bucket settings
• Zero-config startup: run straight from garage.toml, log in with the admin token
• Broad compatibility: Garage v1 through latest, IPv6-only networks, secrets from files
• Inline object preview: images, video, PDF, and text without downloading (#60)
• Presigned share links: time-limited download links from the object browser
• Resumable uploads: multipart uploads that survive a dropped connection
• Visual layout editor: staged vs. applied diff before committing layout changes
• Admin audit log: who changed what, building on access control
• Table and detail polish: sortable columns, clearer node details (#36, #37)

License

MIT - see LICENSE
