certctl — Self-Hosted Certificate Lifecycle Platform

TLS certificate lifespans are shrinking. The CA/Browser Forum passed Ballot SC-081v3 unanimously in April 2025, setting a phased reduction: 200 days by March 2026, 100 days by March 2027, and 47 days by March 2029. Manual certificate management is no longer viable at any scale.

certctl is a self-hosted platform for end-to-end certificate lifecycle automation — from issuance through renewal to deployment — with zero human intervention. Track every certificate in your organization, automatically renew them before they expire, and deploy them to your servers without touching a terminal. Private keys never leave your infrastructure.

What It Does

certctl gives you a single pane of glass for every TLS certificate in your organization. The web dashboard shows your full certificate inventory — what's healthy, what's expiring, what's already expired, and who owns each one. The REST API (77 endpoints under /api/v1/) lets you automate everything. Agents deployed on your infrastructure generate private keys locally and submit CSRs — private keys never leave your servers. The background scheduler watches expiration dates and triggers renewals automatically — when certificate lifespans drop to 47 days, certctl handles the constant rotation without human involvement.

flowchart LR
    subgraph "Control Plane"
        API["REST API + Dashboard\n:8443"]
        PG[("PostgreSQL")]
    end

    subgraph "Your Infrastructure"
        A1["Agent"] --> T1["NGINX"]
        A2["Agent"] --> T2["Apache / HAProxy"]
        A3["Agent"] --> T3["F5 · IIS"]
    end

    API --> PG
    A1 & A2 & A3 -->|"CSR + status\n(no private keys)"| API
    API -->|"Signed certs"| A1 & A2 & A3
    API -->|"Issue/Renew"| CA["Certificate Authorities\nLocal CA · ACME · step-ca · OpenSSL"]

Screenshots

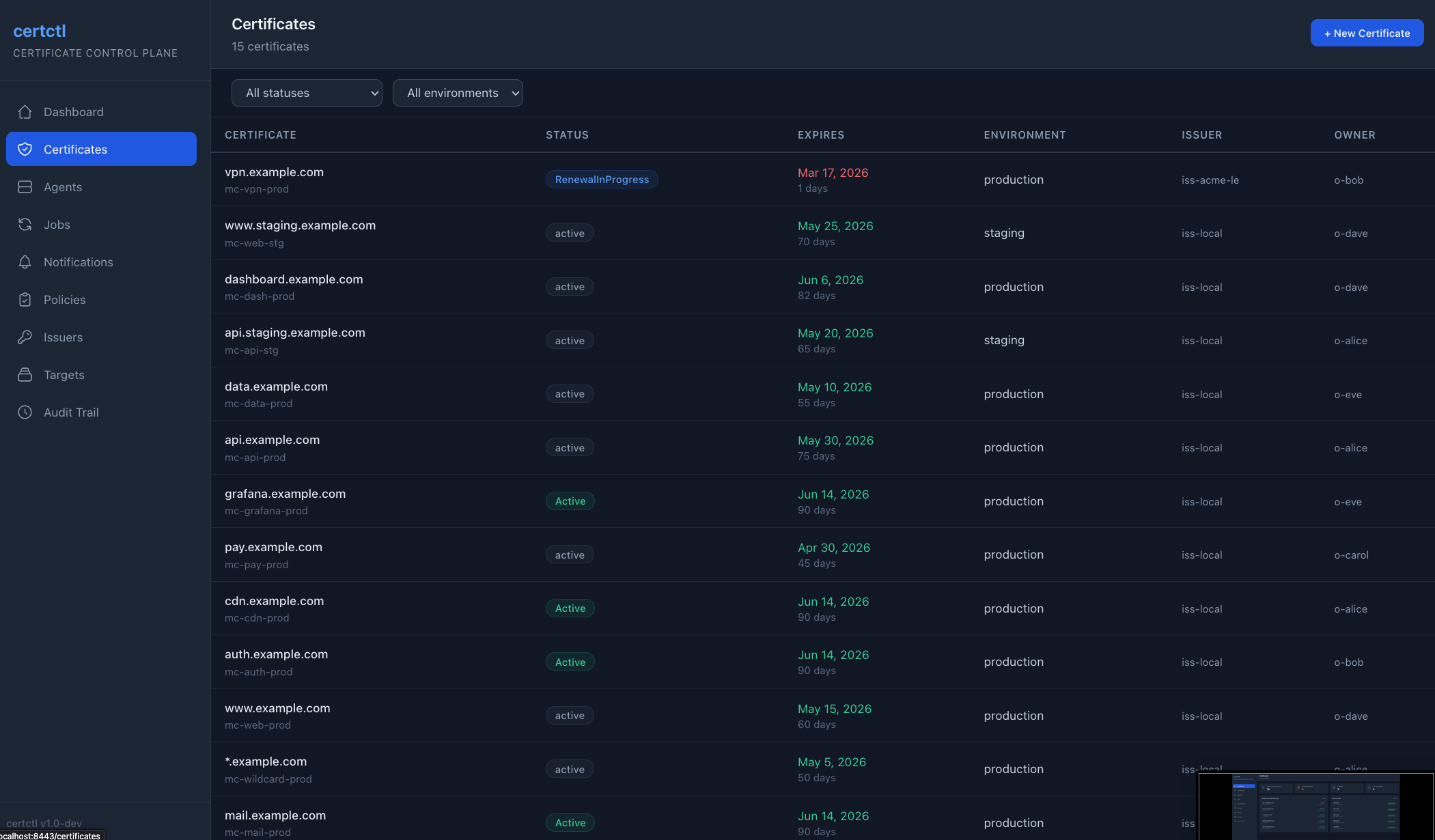

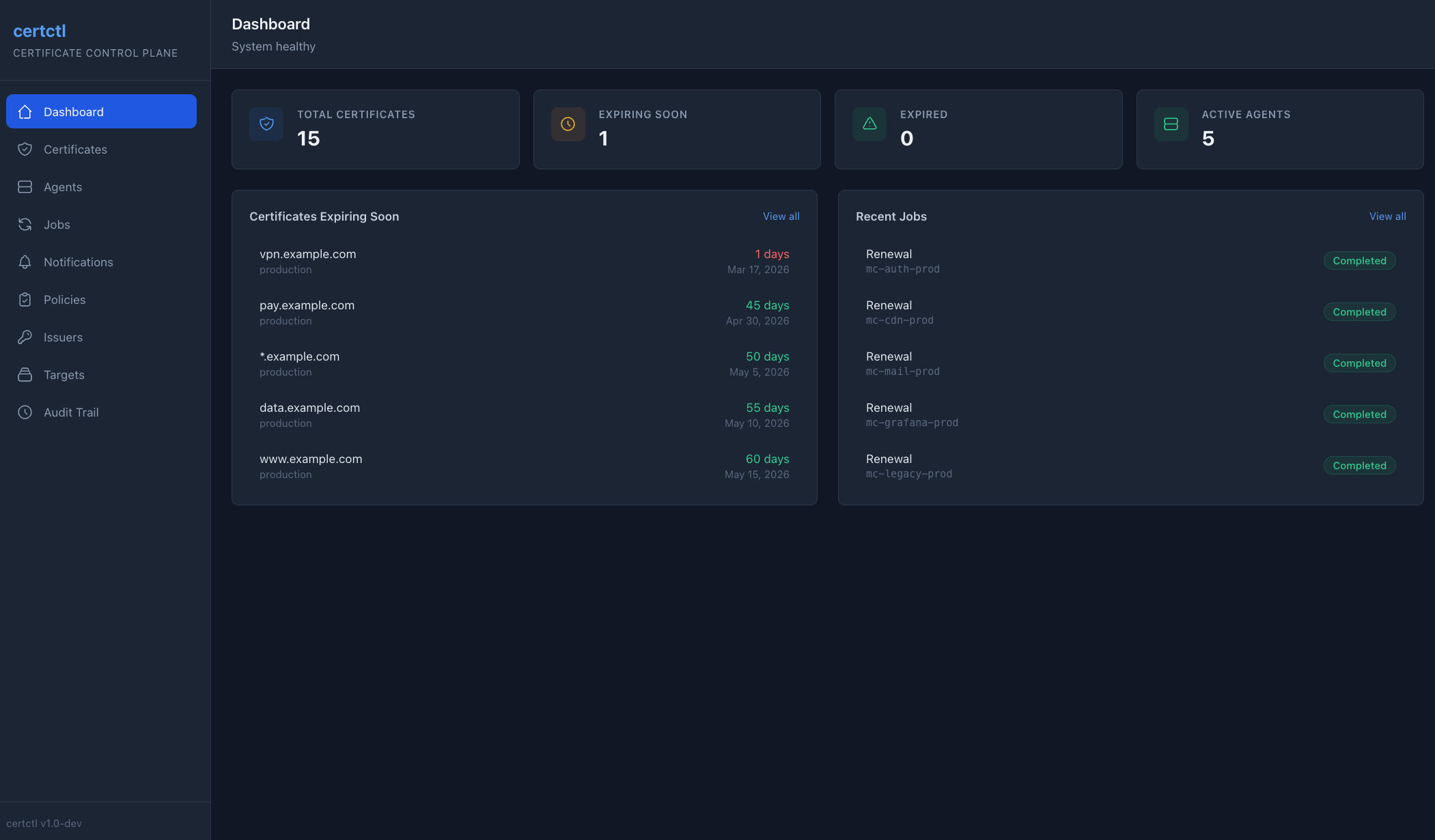

Dashboard — certificate stats, expiry timeline, recent jobs	Certificates — full inventory with status, environment, owner filters

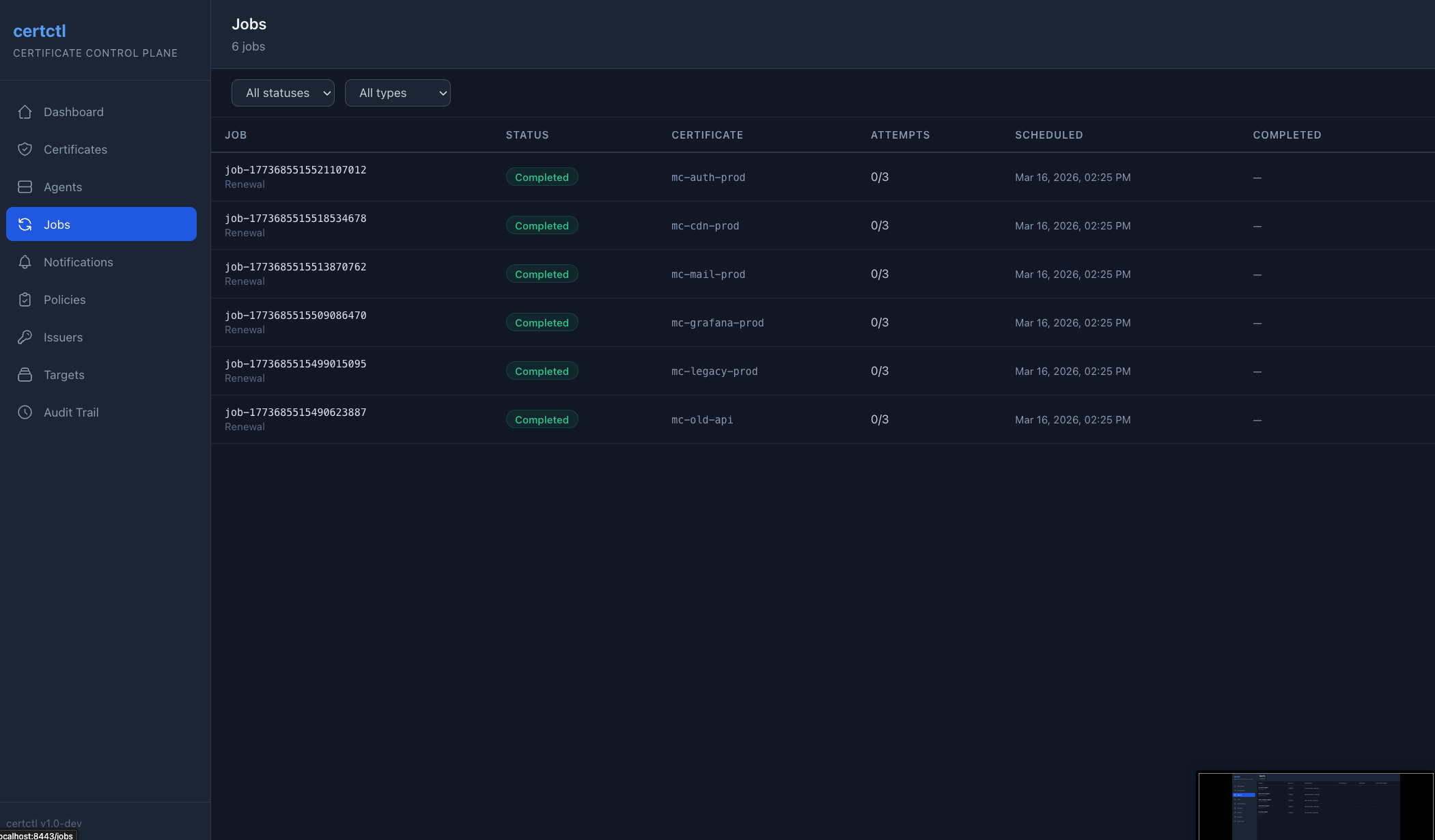

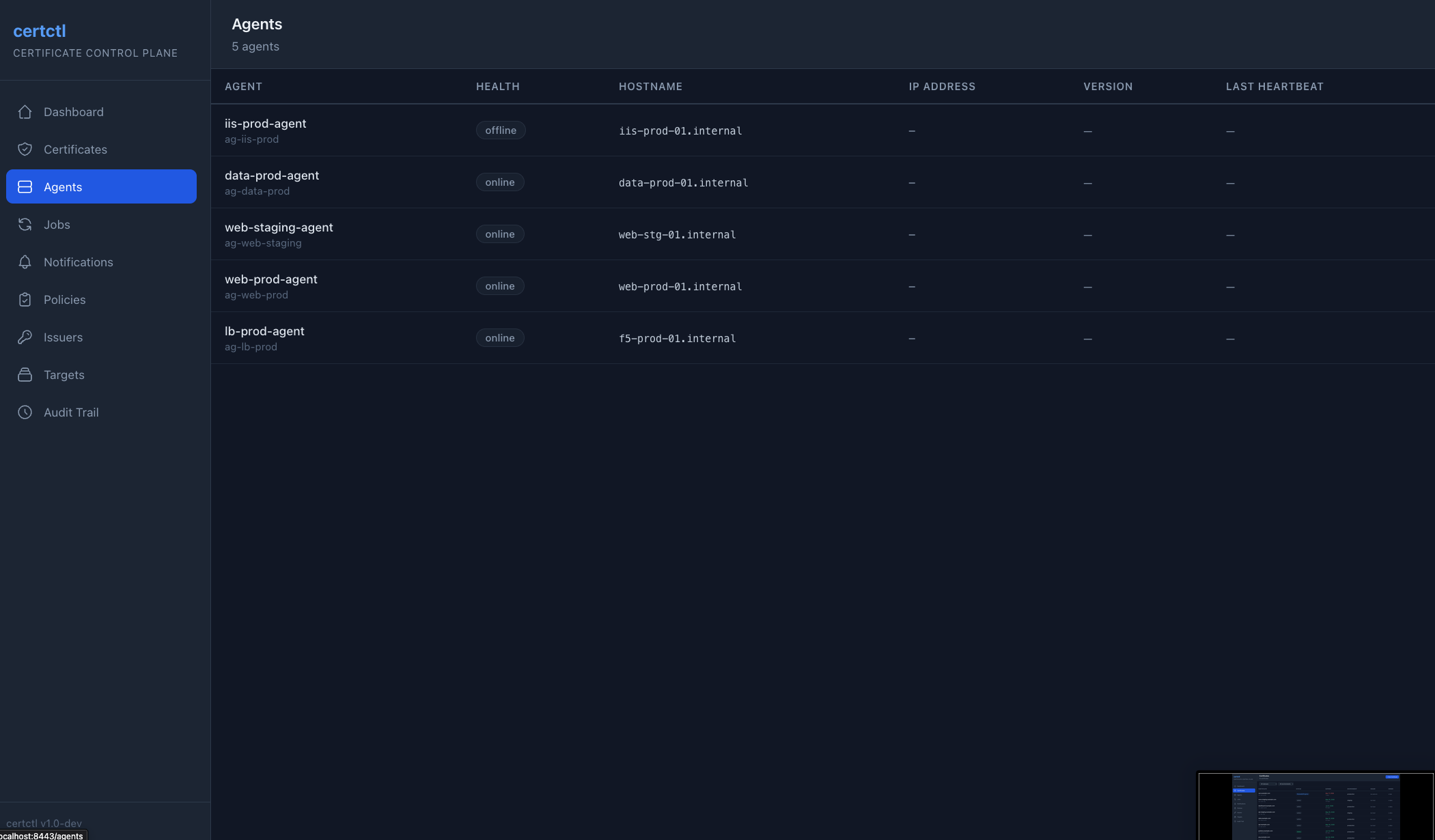

Agents — fleet health, hostname, heartbeat tracking	Jobs — issuance, renewal, deployment job queue

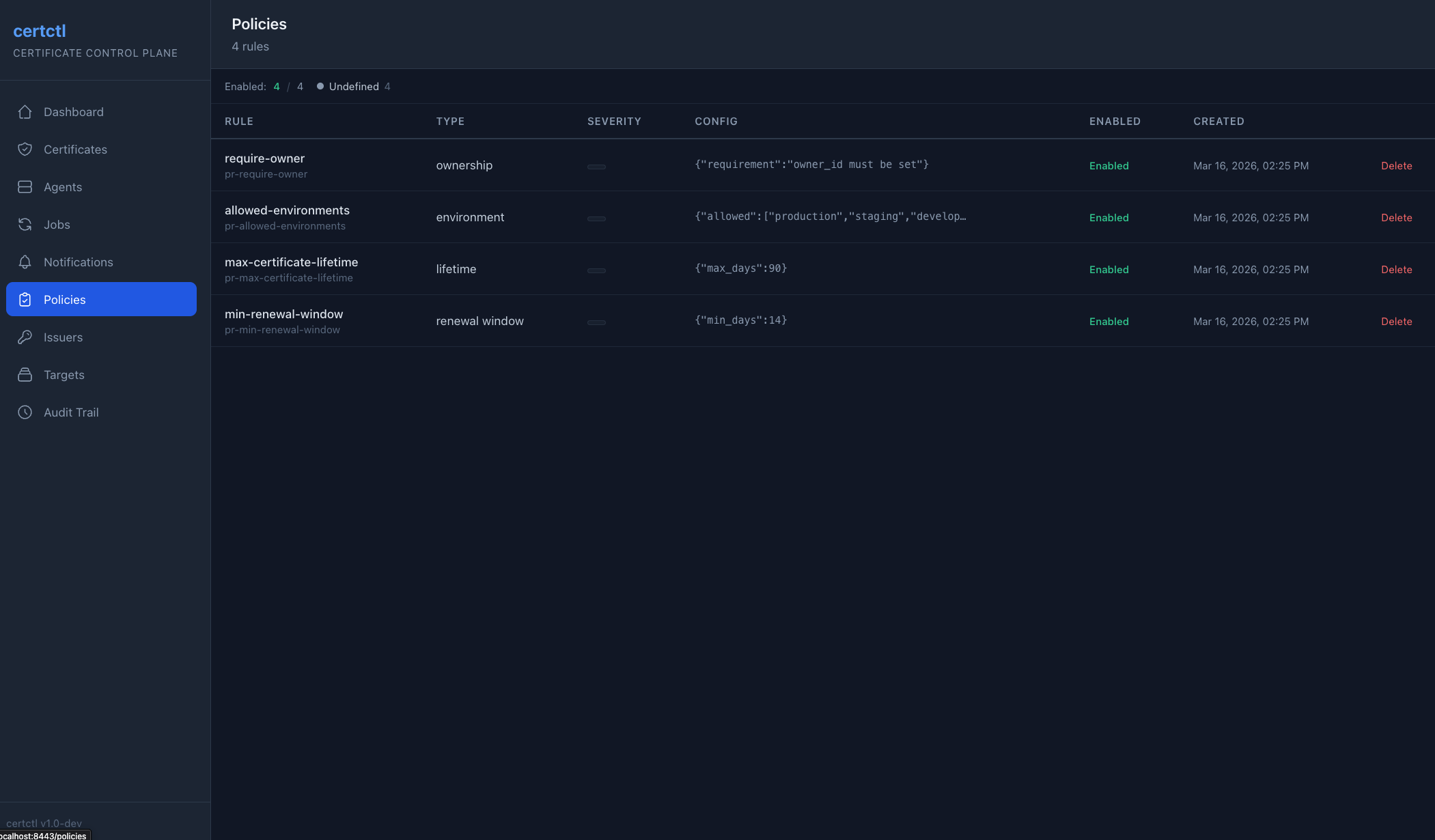

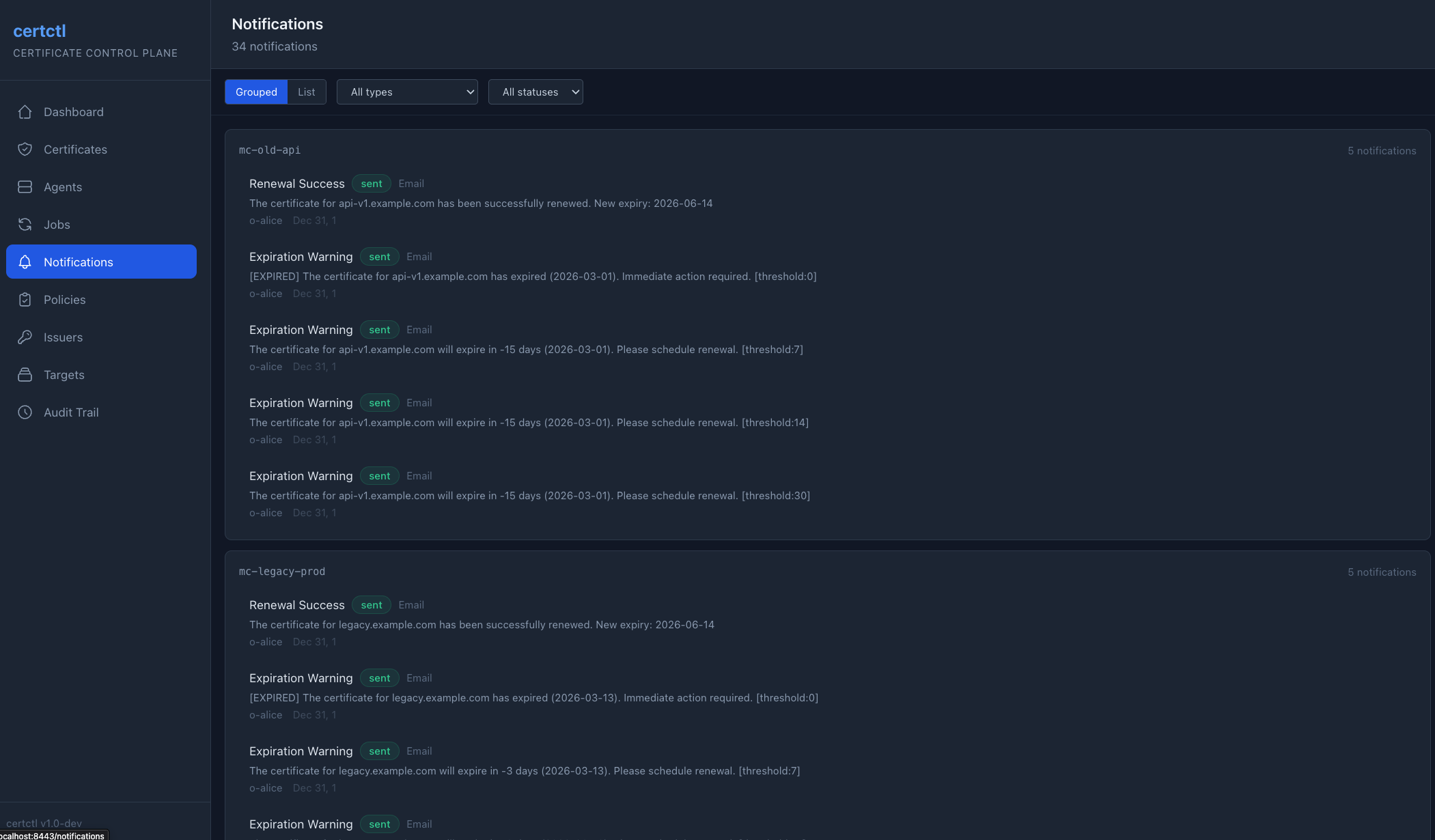

Notifications — threshold alerts grouped by certificate	Policies — enforcement rules with enable/disable and delete

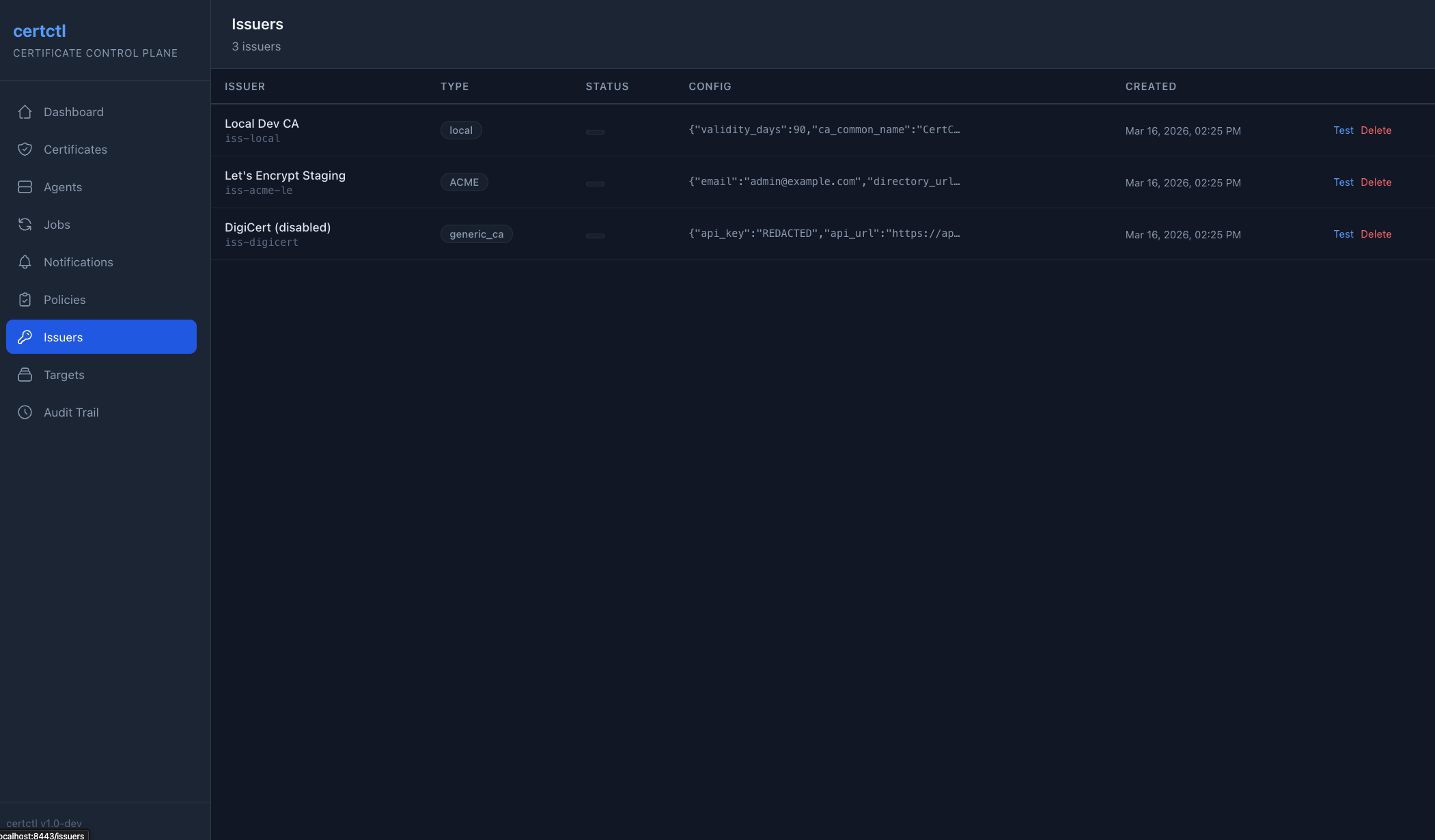

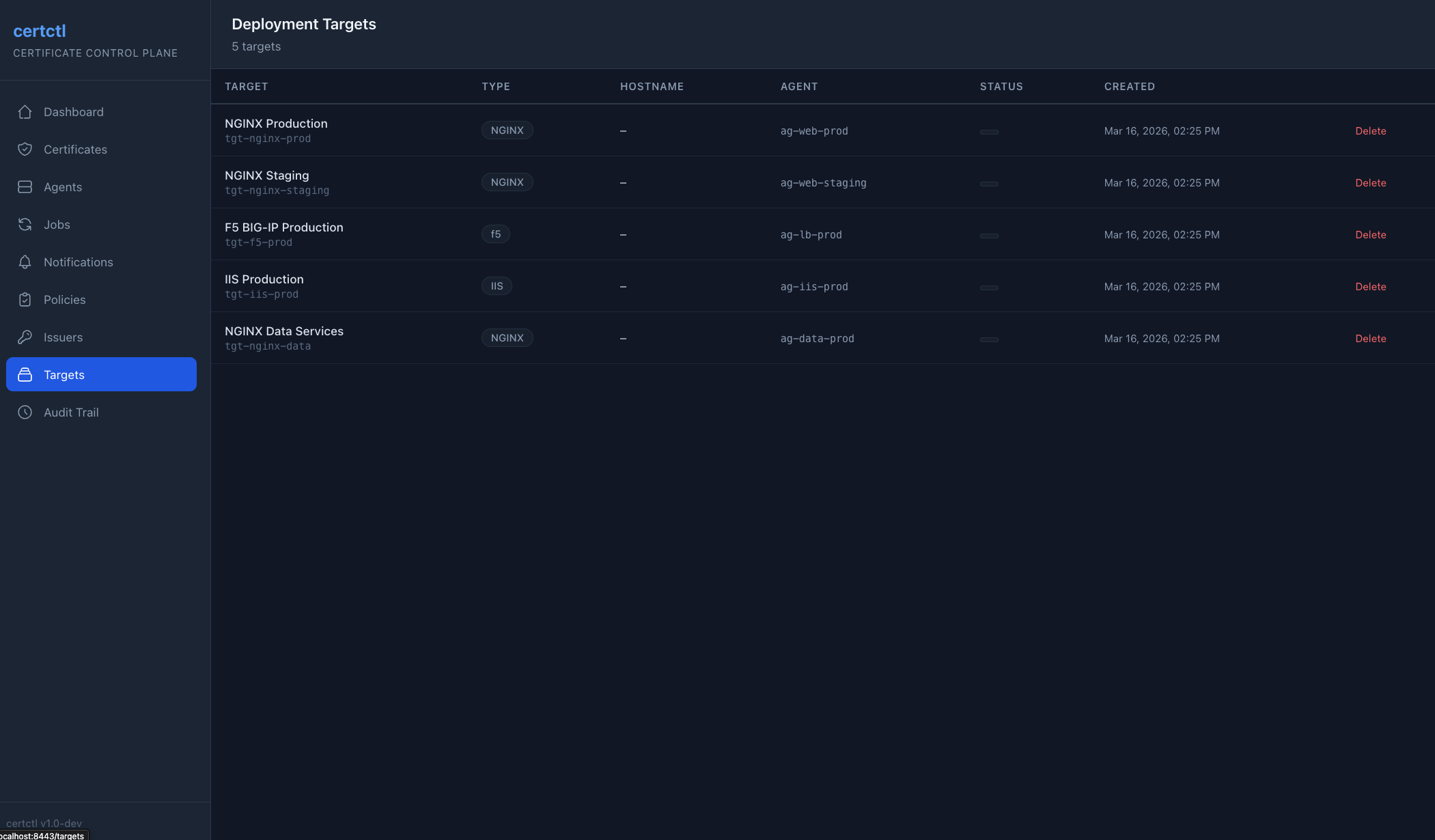

Issuers — CA connectors with test connectivity	Targets — deployment targets (NGINX, Apache, HAProxy, F5, IIS)

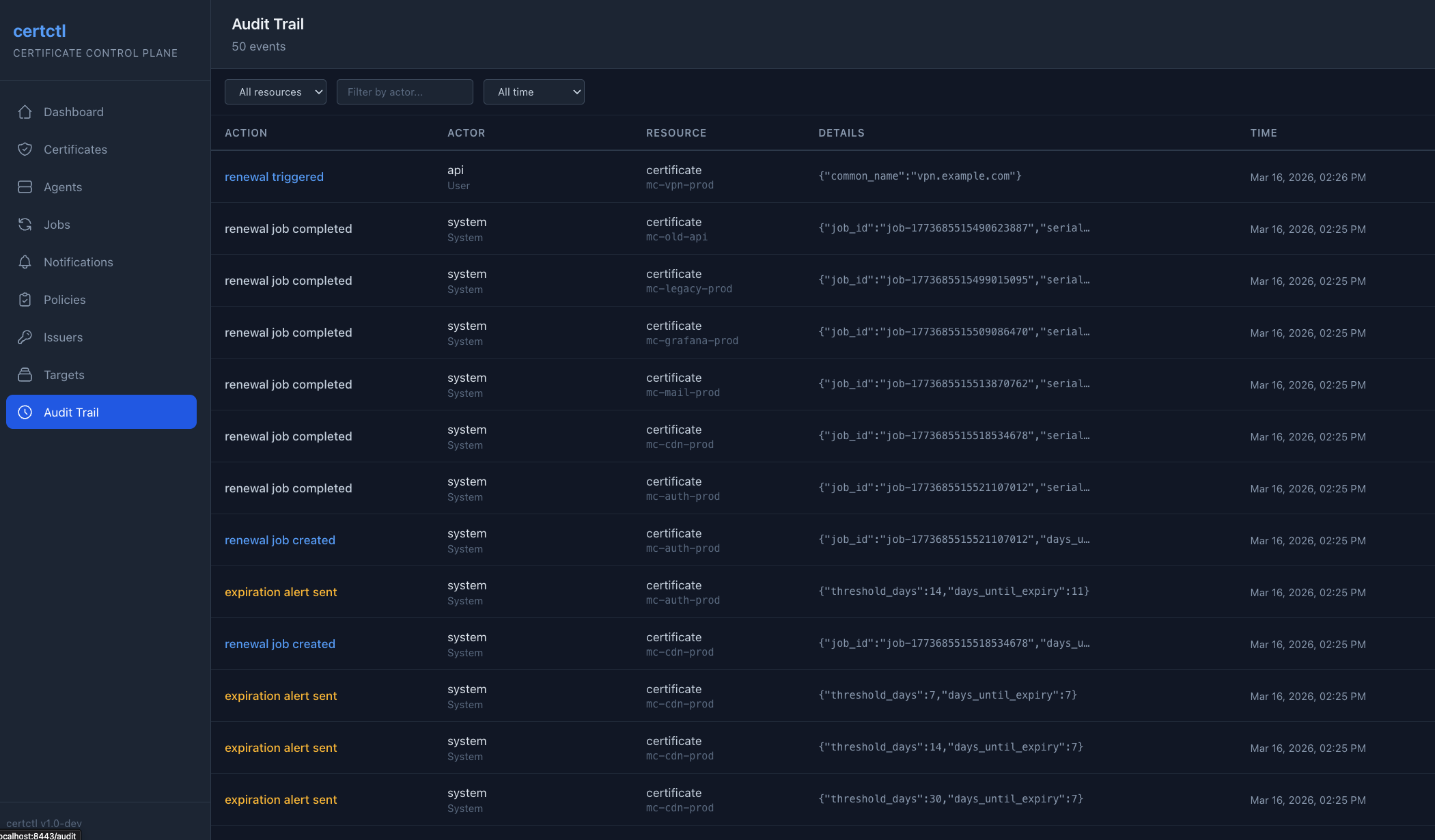

Audit Trail — immutable log of every action

Quick Start

Docker Compose (Recommended)

git clone https://github.com/shankar0123/certctl.git
cd certctl
docker compose -f deploy/docker-compose.yml up -d --build

Wait ~30 seconds, then open http://localhost:8443 in your browser.

The dashboard comes pre-loaded with 15 demo certificates, 5 agents, policy rules, audit events, and notifications — a realistic snapshot of a certificate inventory so you can explore immediately.

Verify the API:

curl http://localhost:8443/health
# {"status":"healthy"}

curl -s http://localhost:8443/api/v1/certificates | jq '.total'
# 15

Manual Build

# Prerequisites: Go 1.22+, PostgreSQL 16+
go mod download
make build

# Set up database
export CERTCTL_DATABASE_URL="postgres://certctl:certctl@localhost:5432/certctl?sslmode=disable"
export CERTCTL_AUTH_TYPE=none
make migrate-up

# Start server
./bin/server

# Start agent (separate terminal)
export CERTCTL_SERVER_URL=http://localhost:8443
export CERTCTL_API_KEY=change-me-in-production
export CERTCTL_AGENT_NAME=local-agent
export CERTCTL_AGENT_ID=agent-local-01
./bin/agent --agent-id=agent-local-01

Documentation

Guide	Description
Concepts	TLS certificates explained from scratch — for beginners who know nothing about certs
Quick Start	Get running in 5 minutes with accurate API examples
Demo Walkthrough	5-7 minute guided stakeholder presentation
Advanced Demo	Issue a certificate end-to-end with technical deep-dives
Architecture	System design, data flow diagrams, security model
Connectors	Build custom issuer, target, and notifier connectors

Architecture

flowchart TB
    subgraph "Control Plane (certctl-server)"
        DASH["Web Dashboard\nReact SPA"]
        API["REST API\nGo 1.22 net/http"]
        SVC["Service Layer"]
        REPO["Repository Layer\ndatabase/sql + lib/pq"]
        SCHED["Scheduler\nRenewal · Jobs · Health · Notifications · Short-Lived Expiry"]
    end

    subgraph "Data Store"
        PG[("PostgreSQL 16\n18 tables\nTEXT primary keys")]
    end

    subgraph "Agents"
        AG["certctl-agent\nKey generation · CSR · Deployment"]
    end

    DASH --> API
    API --> SVC --> REPO --> PG
    SCHED --> SVC
    AG -->|"Heartbeat + CSR"| API
    API -->|"Cert + Chain"| AG

Key Design Decisions

• Private keys isolated from the control plane. Agents generate ECDSA P-256 keys locally and submit CSRs (public key only). The server signs the CSR and returns the certificate — private keys never touch the control plane. Server-side keygen is available via CERTCTL_KEYGEN_MODE=server for demo/development only.
• TEXT primary keys, not UUIDs. IDs are human-readable prefixed strings (mc-api-prod, t-platform, o-alice) so you can identify resource types at a glance in logs and queries.
• Handler → Service → Repository layering. Handlers define their own service interfaces for clean dependency inversion. No global service singletons.
• Idempotent migrations. All schema uses IF NOT EXISTS and seed data uses ON CONFLICT (id) DO NOTHING, safe for repeated execution.

Database Schema

Table	Purpose
managed_certificates	Certificate records with metadata, status, expiry, tags
certificate_versions	Historical versions with PEM chains and CSRs
renewal_policies	Renewal window, auto-renew settings, retry config, alert thresholds
issuers	CA configurations (Local CA, ACME, etc.)
deployment_targets	Target systems (NGINX, F5, IIS) with agent assignments
agents	Registered agents with heartbeat tracking, OS/arch/IP metadata
jobs	Issuance, renewal, deployment, and validation jobs
teams	Organizational groups for certificate ownership
owners	Individual owners with email for notifications
policy_rules	Enforcement rules (allowed issuers, environments, metadata)
policy_violations	Flagged non-compliance with severity levels
audit_events	Immutable action log (append-only, no update/delete)
notification_events	Email and webhook notification records
certificate_target_mappings	Many-to-many cert ↔ target relationships
certificate_profiles	Named enrollment profiles with allowed key types, max TTL, crypto constraints
agent_groups	Dynamic device grouping by OS, architecture, IP CIDR, version
agent_group_members	Manual include/exclude membership for agent groups
certificate_revocations	Revocation records with RFC 5280 reason codes, serial numbers, issuer notification status

Configuration

All server environment variables use the CERTCTL_ prefix:

Variable	Default	Description
CERTCTL_SERVER_HOST	127.0.0.1	Server bind address
CERTCTL_SERVER_PORT	8080	Server listen port
CERTCTL_DATABASE_URL	postgres://localhost/certctl	PostgreSQL connection string
CERTCTL_DATABASE_MAX_CONNS	25	Connection pool size
CERTCTL_LOG_LEVEL	info	Log level: debug, info, warn, error
CERTCTL_LOG_FORMAT	json	Log format: json or text
CERTCTL_AUTH_TYPE	api-key	Auth mode: api-key, jwt, or none
CERTCTL_AUTH_SECRET	—	Required for api-key and jwt auth types
CERTCTL_KEYGEN_MODE	agent	Key generation mode: agent (production) or server (demo only)
CERTCTL_ACME_DIRECTORY_URL	—	ACME directory URL (e.g., Let's Encrypt staging)
CERTCTL_ACME_EMAIL	—	Contact email for ACME account registration
CERTCTL_ACME_CHALLENGE_TYPE	—	ACME challenge type: http-01 (default) or dns-01
CERTCTL_CA_CERT_PATH	—	Path to CA certificate for sub-CA mode
CERTCTL_CA_KEY_PATH	—	Path to CA private key for sub-CA mode
CERTCTL_CORS_ORIGINS	—	Comma-separated allowed CORS origins (empty = same-origin, * = all)
CERTCTL_RATE_LIMIT_ENABLED	true	Enable/disable token bucket rate limiting
CERTCTL_RATE_LIMIT_RPS	50	Requests per second limit
CERTCTL_RATE_LIMIT_BURST	100	Maximum burst size for rate limiter
CERTCTL_DATABASE_MIGRATIONS_PATH	./migrations	Path to SQL migration files
CERTCTL_SCHEDULER_RENEWAL_CHECK_INTERVAL	1h	How often the scheduler checks for expiring certs
CERTCTL_SCHEDULER_JOB_PROCESSOR_INTERVAL	30s	How often the scheduler processes pending jobs
CERTCTL_SCHEDULER_AGENT_HEALTH_CHECK_INTERVAL	2m	How often the scheduler checks agent health
CERTCTL_SCHEDULER_NOTIFICATION_PROCESS_INTERVAL	1m	How often the scheduler processes pending notifications
CERTCTL_ACME_DNS_PRESENT_SCRIPT	—	Script to create DNS-01 _acme-challenge TXT record
CERTCTL_ACME_DNS_CLEANUP_SCRIPT	—	Script to remove DNS-01 _acme-challenge TXT record
CERTCTL_STEPCA_URL	—	step-ca server URL
CERTCTL_STEPCA_PROVISIONER	—	step-ca JWK provisioner name
CERTCTL_STEPCA_KEY_PATH	—	Path to step-ca provisioner private key (JWK JSON)
CERTCTL_STEPCA_PASSWORD	—	step-ca provisioner key password
CERTCTL_OPENSSL_SIGN_SCRIPT	—	Script for OpenSSL/Custom CA certificate signing
CERTCTL_OPENSSL_REVOKE_SCRIPT	—	Script for OpenSSL/Custom CA certificate revocation
CERTCTL_OPENSSL_CRL_SCRIPT	—	Script for OpenSSL/Custom CA CRL generation
CERTCTL_OPENSSL_TIMEOUT_SECONDS	30	Timeout for OpenSSL script execution
CERTCTL_SLACK_WEBHOOK_URL	—	Slack incoming webhook URL for notifications
CERTCTL_TEAMS_WEBHOOK_URL	—	Microsoft Teams incoming webhook URL
CERTCTL_PAGERDUTY_ROUTING_KEY	—	PagerDuty Events API v2 routing key
CERTCTL_OPSGENIE_API_KEY	—	OpsGenie Alert API key

Agent environment variables:

Variable	Default	Description
CERTCTL_SERVER_URL	http://localhost:8080	Control plane URL
CERTCTL_API_KEY	—	Agent API key
CERTCTL_AGENT_NAME	certctl-agent	Agent display name
CERTCTL_AGENT_ID	—	Registered agent ID (required)
CERTCTL_KEY_DIR	/var/lib/certctl/keys	Directory for storing private keys (agent keygen mode)

Docker Compose overrides these for the demo stack (see deploy/docker-compose.yml): port 8443, auth type none, database pointing to the postgres container.

MCP Server (AI Integration)

certctl ships a standalone MCP (Model Context Protocol) server that exposes all 76 API endpoints as tools for AI assistants — Claude, Cursor, Windsurf, OpenClaw, VS Code Copilot, and any MCP-compatible client.

# Install
go install github.com/shankar0123/certctl/cmd/mcp-server@latest

# Configure
export CERTCTL_SERVER_URL=http://localhost:8443   # certctl API endpoint
export CERTCTL_API_KEY=your-api-key               # optional if auth disabled

# Run (stdio transport — add to your AI client config)
mcp-server

Claude Desktop (claude_desktop_config.json):

{
  "mcpServers": {
    "certctl": {
      "command": "mcp-server",
      "env": {
        "CERTCTL_SERVER_URL": "http://localhost:8443",
        "CERTCTL_API_KEY": "your-api-key"
      }
    }
  }
}

76 tools organized by resource: certificates (9), CRL/OCSP (3), issuers (6), targets (5), agents (8), jobs (5), policies (6), profiles (5), teams (5), owners (5), agent groups (6), audit (2), notifications (3), stats (5), metrics (1), health (4).

CLI

certctl ships a command-line tool for terminal-based certificate management workflows.

# Install
go install github.com/shankar0123/certctl/cmd/cli@latest

# Configure
export CERTCTL_SERVER_URL=http://localhost:8443
export CERTCTL_API_KEY=your-api-key

# Commands
certctl-cli list-certs                    # List all certificates
certctl-cli get-cert --id mc-api-prod     # Get certificate details
certctl-cli renew-cert --id mc-api-prod   # Trigger renewal
certctl-cli revoke-cert --id mc-api-prod --reason keyCompromise
certctl-cli list-agents                   # List registered agents
certctl-cli list-jobs                     # List jobs
certctl-cli health                        # Server health check
certctl-cli metrics                       # Server metrics
certctl-cli import --file certs.pem       # Bulk import from PEM file

# Output formats
certctl-cli list-certs --format json      # JSON output (default: table)

API Overview

All endpoints are under /api/v1/ and return JSON. List endpoints support pagination (?page=1&per_page=50). Full request/response schemas are available in the OpenAPI 3.1 spec.

Certificates

GET    /api/v1/certificates              List (filter, sort, cursor, sparse fields)
POST   /api/v1/certificates              Create
GET    /api/v1/certificates/{id}          Get
PUT    /api/v1/certificates/{id}          Update
DELETE /api/v1/certificates/{id}          Archive (soft delete)
GET    /api/v1/certificates/{id}/versions Version history
GET    /api/v1/certificates/{id}/deployments  List deployment targets
POST   /api/v1/certificates/{id}/renew    Trigger renewal → 202 Accepted
POST   /api/v1/certificates/{id}/deploy   Trigger deployment → 202 Accepted
POST   /api/v1/certificates/{id}/revoke   Revoke with RFC 5280 reason code
GET    /api/v1/crl                        Certificate Revocation List (JSON)
GET    /api/v1/crl/{issuer_id}            DER-encoded X.509 CRL
GET    /api/v1/ocsp/{issuer_id}/{serial}  OCSP responder (good/revoked/unknown)

Agents

GET    /api/v1/agents                     List
POST   /api/v1/agents                     Register
GET    /api/v1/agents/{id}                Get
POST   /api/v1/agents/{id}/heartbeat      Record heartbeat
POST   /api/v1/agents/{id}/csr            Submit CSR for issuance
GET    /api/v1/agents/{id}/certificates/{certId}  Retrieve signed certificate
GET    /api/v1/agents/{id}/work            Poll for pending deployment jobs
POST   /api/v1/agents/{id}/jobs/{jobId}/status  Report job completion/failure

Infrastructure

GET    /api/v1/issuers                    List issuers
POST   /api/v1/issuers                    Create
GET    /api/v1/issuers/{id}               Get
PUT    /api/v1/issuers/{id}               Update
DELETE /api/v1/issuers/{id}               Delete
POST   /api/v1/issuers/{id}/test          Test connectivity

GET    /api/v1/targets                    List deployment targets
POST   /api/v1/targets                    Create
GET    /api/v1/targets/{id}               Get
PUT    /api/v1/targets/{id}               Update
DELETE /api/v1/targets/{id}               Delete

Organization

GET    /api/v1/teams                      List teams
POST   /api/v1/teams                      Create
GET    /api/v1/teams/{id}                 Get
PUT    /api/v1/teams/{id}                 Update
DELETE /api/v1/teams/{id}                 Delete
GET    /api/v1/owners                     List owners
POST   /api/v1/owners                     Create
GET    /api/v1/owners/{id}                Get
PUT    /api/v1/owners/{id}                Update
DELETE /api/v1/owners/{id}                Delete

Operations

GET    /api/v1/jobs                       List (filter: status, type)
GET    /api/v1/jobs/{id}                  Get
POST   /api/v1/jobs/{id}/cancel           Cancel
POST   /api/v1/jobs/{id}/approve          Approve (interactive renewal)
POST   /api/v1/jobs/{id}/reject           Reject (interactive renewal)

GET    /api/v1/policies                   List policy rules
POST   /api/v1/policies                   Create
GET    /api/v1/policies/{id}              Get
PUT    /api/v1/policies/{id}              Update (enable/disable)
DELETE /api/v1/policies/{id}              Delete
GET    /api/v1/policies/{id}/violations   List violations for rule

GET    /api/v1/profiles                   List certificate profiles
POST   /api/v1/profiles                   Create
GET    /api/v1/profiles/{id}              Get
PUT    /api/v1/profiles/{id}              Update
DELETE /api/v1/profiles/{id}              Delete

GET    /api/v1/agent-groups               List agent groups
POST   /api/v1/agent-groups               Create
GET    /api/v1/agent-groups/{id}          Get
PUT    /api/v1/agent-groups/{id}          Update
DELETE /api/v1/agent-groups/{id}          Delete
GET    /api/v1/agent-groups/{id}/members  List members

GET    /api/v1/audit                      Query audit trail
GET    /api/v1/audit/{id}                 Get audit event
GET    /api/v1/notifications              List notifications
GET    /api/v1/notifications/{id}         Get notification
POST   /api/v1/notifications/{id}/read    Mark as read

Observability

GET    /api/v1/stats/summary              Dashboard summary (totals, expiring, agents, jobs)
GET    /api/v1/stats/certificates-by-status  Certificate counts grouped by status
GET    /api/v1/stats/expiration-timeline   Expiration buckets (?days=30)
GET    /api/v1/stats/job-trends            Job success/failure over time (?days=7)
GET    /api/v1/stats/issuance-rate         Certificate issuance rate (?days=7)
GET    /api/v1/metrics                     JSON metrics (gauges, counters, uptime)

Auth

GET    /api/v1/auth/info                  Auth mode info (no auth required)
GET    /api/v1/auth/check                 Validate credentials

Health

GET    /health                            Server health check
GET    /ready                             Readiness check

Supported Integrations

Certificate Issuers

Issuer	Status	Type
Local CA (self-signed + sub-CA)	Implemented	GenericCA
ACME v2 (Let's Encrypt, Sectigo)	Implemented (HTTP-01 + DNS-01)	ACME
step-ca	Implemented	StepCA
OpenSSL / Custom CA	Implemented	OpenSSL
Vault PKI	Planned	—
DigiCert	Planned	—

Note: ADCS integration is handled via the Local CA's sub-CA mode — certctl operates as a subordinate CA with its signing certificate issued by ADCS.

Deployment Targets

Target	Status	Type
NGINX	Implemented	NGINX
Apache httpd	Implemented	Apache
HAProxy	Implemented	HAProxy
F5 BIG-IP	Interface only	F5
Microsoft IIS	Interface only	IIS
Kubernetes Secrets	Planned	—

Notifiers

Notifier	Status	Type
Email (SMTP)	Implemented	Email
Webhooks	Implemented	Webhook
Slack	Implemented	Slack
Microsoft Teams	Implemented	Teams
PagerDuty	Implemented	PagerDuty
OpsGenie	Implemented	OpsGenie

Development

# Install dev tools (golangci-lint, migrate CLI, air)
make install-tools

# Run tests
make test

# Run with coverage
make test-coverage

# Lint
make lint

# Format
make fmt

Docker Compose

make docker-up          # Start stack (server + postgres + agent)
make docker-down        # Stop stack
make docker-logs-server # Server logs
make docker-logs-agent  # Agent logs
make docker-clean       # Stop + remove volumes

Security

Private Key Management

• Agent keygen mode (default): Agents generate ECDSA P-256 keys locally and store them with 0600 permissions in CERTCTL_KEY_DIR (default /var/lib/certctl/keys). Only the CSR (public key) is sent to the control plane. Private keys never leave agent infrastructure.
• Server keygen mode (demo only): Set CERTCTL_KEYGEN_MODE=server for development/demo with Local CA. The control plane generates RSA-2048 keys server-side. A log warning is emitted at startup.

Authentication

• Agent-to-server: API key (registered at agent creation)
• API key and JWT auth types supported; none for demo/development
• Auth type and secret configured via CERTCTL_AUTH_TYPE and CERTCTL_AUTH_SECRET

Audit Trail

• Immutable append-only log in PostgreSQL (audit_events table)
• Every lifecycle action attributed to an actor with timestamp and resource reference
• No update or delete operations on audit records
• Every API call recorded to audit trail with method, path, actor, SHA-256 body hash, response status, and latency (M19)

Roadmap

V1 (v1.0.0 released)

All nine development milestones (M1–M9) are complete. The backend covers the full certificate lifecycle: Local CA and ACME v2 issuers, NGINX/Apache/HAProxy/F5/IIS target connectors, threshold-based expiration alerting, agent-side ECDSA P-256 key generation, API auth with rate limiting, and a React dashboard with 19 pages wired to the real API. The CI pipeline runs build, vet, test with coverage gates (service layer 30%+, handler layer 50%+), frontend type checking, Vitest test suite, and Vite production build on every push. Docker images are published to GitHub Container Registry on every version tag via the release workflow.

V2: Operational Maturity

• M10: Agent Metadata + Targets ✅ — agents report OS, architecture, IP, hostname, version via heartbeat; Apache httpd and HAProxy target connectors
• M11: Crypto Policy + Profiles + Ownership ✅ — certificate profiles (named enrollment profiles with allowed key types, max TTL, crypto constraints), certificate ownership tracking (owners + teams + notification routing), dynamic agent groups (OS/arch/IP CIDR/version matching), interactive renewal approval (AwaitingApproval state)
• M12: Sub-CA + DNS-01 + step-ca ✅ — Local CA sub-CA mode (enterprise root chain with RSA/ECDSA/PKCS#8), ACME DNS-01 challenges (script-based DNS hooks for any provider, wildcard cert support), step-ca issuer connector (native /sign API with JWK provisioner auth)
• M15a: Core Revocation ✅ — revocation API with all RFC 5280 reason codes, JSON CRL endpoint, webhook + email revocation notifications, best-effort issuer notification, certificate_revocations table with idempotent recording, 48 new tests
• M15b: OCSP + Revocation GUI ✅ — embedded OCSP responder (GET /api/v1/ocsp/{issuer_id}/{serial}), DER-encoded X.509 CRL (GET /api/v1/crl/{issuer_id}), short-lived cert exemption (TTL < 1h skip CRL/OCSP), revocation GUI with reason modal, ~31 new tests
• M13: GUI Operations ✅ — bulk cert operations (multi-select → renew, revoke, reassign owner), deployment status timeline, inline policy/profile editor, target connector configuration wizard, audit trail export (CSV/JSON), short-lived credentials dashboard view
• M14: Observability ✅ — dashboard charts (expiration heatmap, cert status distribution, job trends, issuance rate), agent fleet overview with OS/arch grouping, JSON metrics endpoint, stats API (5 endpoints), structured logging with request IDs, deployment rollback
• M18a: MCP Server ✅ (V2.1) — AI-native integration, all 76 REST API endpoints exposed as MCP tools for Claude, Cursor, OpenClaw, and any MCP-compatible client
• M19: Immutable API Audit Log ✅ — every API call recorded to immutable audit trail (method, path, actor, SHA-256 body hash, status, latency), async recording via goroutine, configurable path exclusions
• M16a: Notifier Connectors ✅ — Slack (incoming webhook), Microsoft Teams (MessageCard), PagerDuty (Events API v2), OpsGenie (Alert API v2) — config-driven enablement via env vars
• M17: Additional Connectors ✅ — OpenSSL/Custom CA issuer connector (script-based signing with configurable timeout)
• M16b: CLI + Bulk Import ✅ — certctl-cli with 10 subcommands (list/get/renew/revoke certs, list agents/jobs, health, metrics, PEM bulk import), stdlib-only, JSON/table output
• M20: Enhanced Query API ✅ — sparse field selection (?fields=), sort with direction (?sort=-notAfter), time-range filters (expires_before, created_after, etc.), cursor-based pagination (?cursor=&page_size=), GET /certificates/{id}/deployments, additional filters (agent_id, profile_id)
• M18b: Filesystem Cert Discovery — agents walk directories, parse PEM/DER/PFX/JKS, report unmanaged certs to control plane
• Compliance Mapping — SOC 2 Type II, PCI-DSS 4.0, NIST SP 800-57 capability mapping documentation

V3: Team & Enterprise

Team access controls, identity provider integration, enterprise deployment targets, compliance and risk scoring, advanced fleet operations, event-driven architecture, advanced search, real-time operational views, and premium CA integrations.

V4+: Discovery, Cloud & Scale

Discovery engine, Kubernetes integration, cloud infrastructure targets, extended CA support, and platform-scale features.

License

Certctl is licensed under the Business Source License 1.1. The source code is publicly available and free to use, modify, and self-host. The one restriction: you may not offer certctl as a managed/hosted certificate management service to third parties.
