Single Sign-On (SSO)

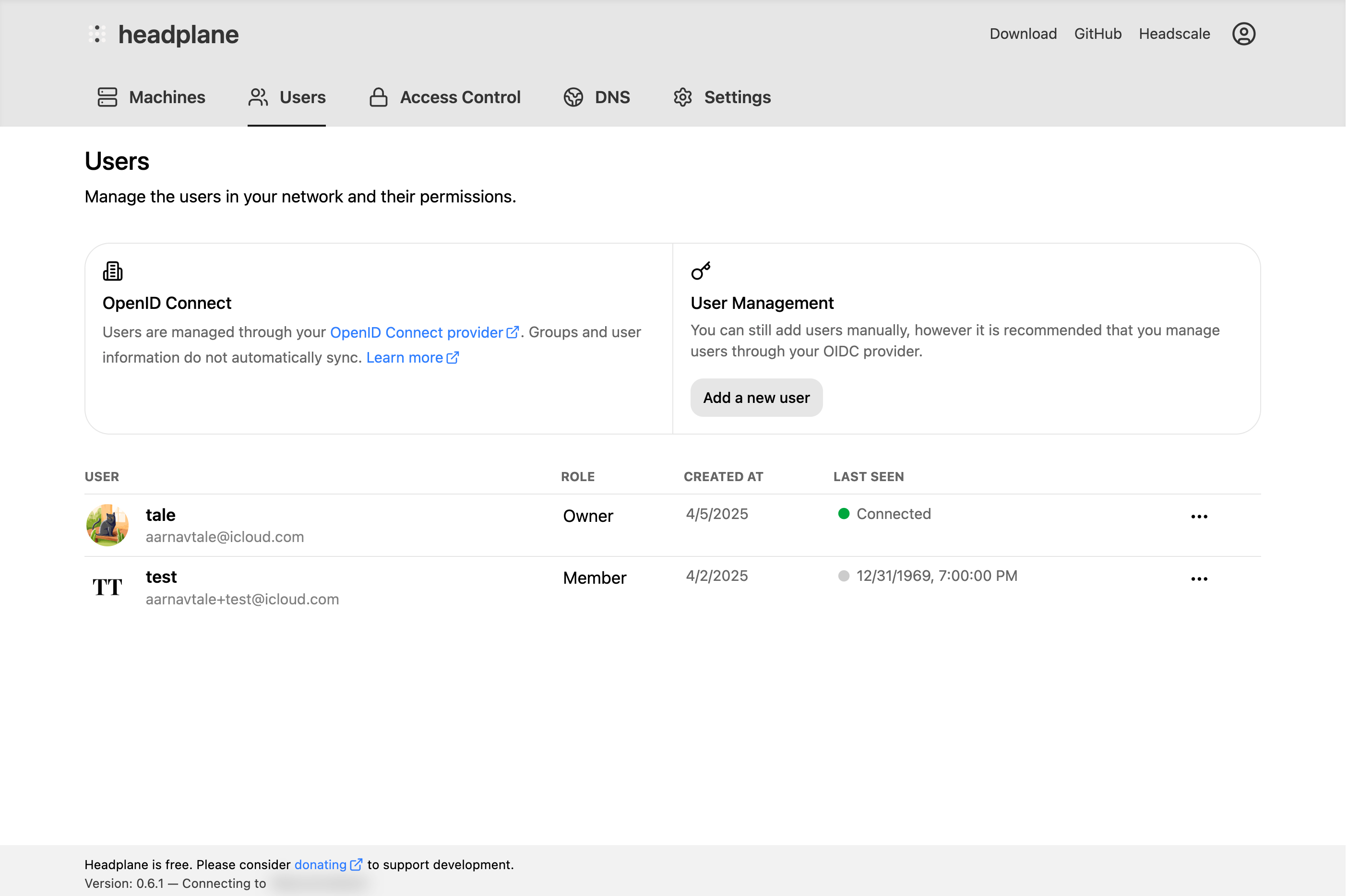

SSO Configuration Page

Headplane supports Single Sign-On (SSO) authentication using OpenID Connect (OIDC). This allows users to authenticate using an external Identity Provider (IdP) that supports OIDC, streamlining the login process and enhancing security.

This is generally the recommended authentication method when using Headplane in production environments as it provides the deepest integration with Headscale and allows for seamless user management.

Configuring OIDC

To configure Single Sign-On (SSO) you'll need to first setup a client with your Identity Provider that supports OIDC. The exact steps to do this will vary, but generally you'll need to be able to provide the following information to Headplane:

Field	Description
Client ID	The client identifier provided by your IdP.
Client Secret	The client secret provided by your IdP.
Issuer URL	The OIDC issuer URL given by your IdP.

::: tip If you are using a custom prefix other than /admin for the Headplane web UI, please ensure that you adjust the redirect URL accordingly when setting up your OIDC client. :::

Before creating the client, configure Headplane to use a redirect URL that your IdP will accept. You'll need to set server.base_url to the public URL of your Headplane instance in your configuration file. For example, if your Headplane instance runs on https://headplane.example.com/admin, set:

server:
  base_url: "https://headplane.example.com"

and provide the following redirect URL to your IdP when creating the client:

https://headplane.example.com/admin/auth/callback

Headscale API Key

Once you have created the client with your IdP, you'll need to generate an API key for Headplane to use when communicating with Headscale. You can do this by running headscale apikeys create -e 1y to create an API key that is valid for one year (you can adjust the expiration as needed). Make sure to copy the generated API key as you will need it for the Headplane configuration.

Headplane Configuration

Finally, you can configure Headplane to use OIDC by adding the following fields to your Headplane configuration file:

oidc:
  issuer: "https://your-idp.com"
  client_id: "your-client-id"
  client_secret: "your-client-secret"
  headscale_api_key: "<generated-api-key>"

  # Those options should generally be sufficient, but you can also set these:
  # authorization_endpoint: ""
  # token_endpoint: ""
  # userinfo_endpoint: ""
  # scope: "openid email profile"
  # extra_params:
  #  foo: "bar"
  #  baz: "qux"

Troubleshooting

Some of the common issues you may encounter when configuring OIDC with Headplane include:

• Invalid API Key: Ensure that the API key provided to Headplane is valid and has not expired.
• Missing [some]_endpoint: If your IdP does not provide standard OIDC endpoints, you may need to manually specify them in the Headplane configuration.
• Missing the sub claim: Ensure that your IdP is configured to include the sub claim in the ID token, as this is required for Headplane to identify users.
• Redirect URI Mismatch: Ensure that the redirect URI configured in your IdP and that server.base_url in Headplane match exactly.
• Cookie Issues: The OIDC authentication relies on your cookie configuration for Headplane. If OIDC cannot complete due to a missing session or invalid session then please check your cookie settings.
