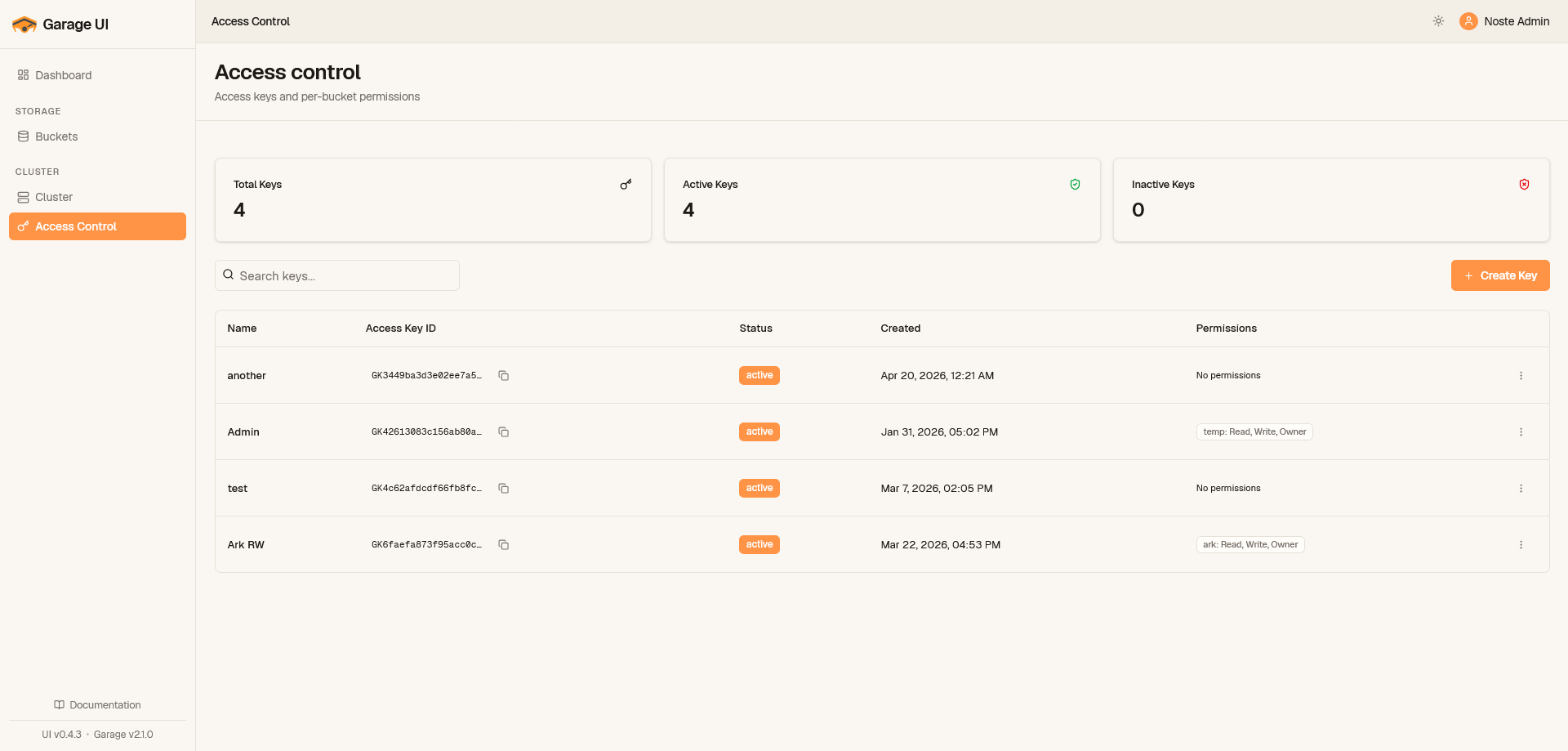

# Garage UI - Web Dashboard for Garage S3 Storage A modern web interface to manage Garage object storage clusters. Browse buckets, manage access keys, monitor your cluster, all from your browser. --- ## Features - **Bucket management** - create, configure, and browse buckets with drag-and-drop file uploads - **Access key management** - create keys, assign per-bucket permissions - **Cluster overview** - monitor node status, layout configuration, and storage usage - **Flexible authentication** - no auth, basic credentials, or OIDC (Keycloak, Authentik, etc.) - **Easy deployment** - single Docker image or Helm chart, configure with one YAML file ## Quick Start ### Prerequisites - Docker & Docker Compose - A running Garage cluster (v2.1.0+) - [setup guide](docs/garage-setup.md) if you need one ### 1. Clone & Configure ```bash git clone https://github.com/Noooste/garage-ui.git cd garage-ui cp config.example.yaml config.yaml ``` Edit `config.yaml` with your Garage endpoints and admin token (from `garage.toml`). ### 2. Start ```bash docker compose up -d garage-ui ``` Access at http://localhost:8080 ## Deployment ### Docker ```bash docker run -d -p 8080:8080 \ -v $(pwd)/config.yaml:/app/config.yaml \ noooste/garage-ui:latest ``` ### Kubernetes ```bash helm repo add garage-ui https://helm.noste.dev/ helm install garage-ui garage-ui/garage-ui \ --set garage.endpoint=http://garage:3900 \ --set garage.adminEndpoint=http://garage:3903 \ --set garage.adminToken=your-token ``` Access at http://localhost:8080 ### Quick Start with garage.toml If you already have a running Garage instance, you can point Garage UI directly at your `garage.toml` -- no `config.yaml` needed: ```bash ./garage-ui --garage-toml /etc/garage.toml ``` Garage UI reads the S3 endpoint, admin endpoint, admin token, and S3 region straight from the TOML file. When no authentication method is explicitly configured, **token auth auto-enables**: the login page asks for the Garage admin token, giving you a login wall with zero extra config. **Bind address handling:** Wildcard addresses like `0.0.0.0` or `[::]` are converted to `127.0.0.1` so the UI can reach Garage on localhost. Inside containers this won't work -- override the endpoint explicitly with environment variables or a config file. **Docker:** ```bash docker run -d -p 8080:8080 \ -v /etc/garage.toml:/etc/garage.toml:ro \ -e GARAGE_UI_GARAGE_TOML=/etc/garage.toml \ -e GARAGE_UI_GARAGE_ENDPOINT=http://garage:3900 \ -e GARAGE_UI_GARAGE_ADMIN_ENDPOINT=http://garage:3903 \ noooste/garage-ui:latest ``` The endpoint overrides are needed because the container cannot reach `127.0.0.1` on the host. **Combining flags:** Use `--garage-toml` for Garage connection values and `--config` for everything else (auth, CORS, logging, etc.): ```bash ./garage-ui --garage-toml /etc/garage.toml --config config.yaml ``` **Precedence order** (highest wins): built-in defaults < `garage.toml` < `config.yaml` < environment variables. ## Configuration Minimum required config: ```yaml server: port: 8080 garage: endpoint: "http://garage:3900" admin_endpoint: "http://garage:3903" admin_token: "your-admin-token" region: "garage" ``` Server bind host is configured by `server.host` (default: `::`). IPv6 literals like `::` and `::1` are supported. ```yaml server: host: "::" # IPv6 wildcard (dual-stack-preferred) port: 8080 ``` If your environment needs explicit IPv4-only binding, set `server.host: "0.0.0.0"`. See [config.example.yaml](config.example.yaml) for all options including authentication, CORS, and logging. ### Environment Variables Override any config value with `GARAGE_UI_` prefix: ```bash GARAGE_UI_SERVER_PORT=8080 GARAGE_UI_GARAGE_ENDPOINT=http://garage:3900 GARAGE_UI_GARAGE_ADMIN_TOKEN=your-token ``` #### Loading sensitive values from files (`_FILE` suffix) For Docker/Kubernetes secret integration, sensitive env vars can be read from files instead of plain values. Set `{VAR}_FILE=/path/to/file` and garage-ui reads the file's contents (trailing CR/LF trimmed) as the value. If both `{VAR}` and `{VAR}_FILE` are set, `_FILE` wins and a warning is logged. A missing or unreadable file causes startup to fail. Supported vars: - `GARAGE_UI_GARAGE_ADMIN_TOKEN_FILE` - `GARAGE_UI_AUTH_ADMIN_USERNAME_FILE` - `GARAGE_UI_AUTH_ADMIN_PASSWORD_FILE` - `GARAGE_UI_AUTH_JWT_PRIVATE_KEY_FILE` - `GARAGE_UI_AUTH_OIDC_CLIENT_ID_FILE` - `GARAGE_UI_AUTH_OIDC_CLIENT_SECRET_FILE` Example with Docker Compose secrets: ```yaml services: garage-ui: image: noooste/garage-ui:latest environment: GARAGE_UI_AUTH_ADMIN_PASSWORD_FILE: /run/secrets/admin_password secrets: - admin_password secrets: admin_password: file: ./admin_password.txt ``` This matches the convention used by the official Postgres and MySQL Docker images. Helm users do not need this — the chart already injects secrets via `existingSecret` references. ## Garage Configuration Garage UI requires these settings in your `garage.toml`: ```toml # Admin API (required for Garage UI) [admin] api_bind_addr = "0.0.0.0:3903" # Default: 127.0.0.1:3903 admin_token = "your-admin-token" # Generate with: openssl rand -base64 32 # S3 API [s3_api] s3_region = "garage" # Default: "garage" api_bind_addr = "[::]:3900" # Default: 127.0.0.1:3900 ``` **Important:** The `admin_token` and `s3_region` in `garage.toml` must match your Garage UI `config.yaml`. For complete Garage configuration, see the [official documentation](https://garagehq.deuxfleurs.fr/documentation/reference-manual/configuration/). ## Development Backend (Go 1.25+): ```bash cd backend go run main.go --config ../config.yaml ``` Frontend (Node.js 25+): ```bash cd frontend npm install npm run dev ``` API docs: http://localhost:8080/api/v1/ ## Troubleshooting **Connection failed:** ```bash curl http://localhost:3903/status -H "Authorization: Bearer your-token" ``` **Enable debug logs:** ```yaml logging: level: "debug" format: "text" # or "json" ``` ## Roadmap Ideas being considered. Contributions welcome. **Object browser** - [ ] Inline preview (images, PDF, video, text/markdown, code) - [ ] Resumable multipart uploads with pause/resume - [ ] Folder uploads preserving prefix structure - [ ] Bulk actions (delete, copy prefix, download prefix as zip) - [ ] Command palette (Cmd-K) and keyboard navigation **Sharing** - [ ] Presigned download links with expiry + QR code - [ ] Presigned upload drop-zones ("send me a file" pages) **Buckets** - [ ] Bucket alias manager (global vs. user-scoped) - [ ] Quota editor with live usage bar - [ ] Lifecycle editor (expiration + abort-multipart) - [ ] CORS editor with built-in test request - [ ] Website config (index/error docs) with live link - [ ] Per-bucket usage graph over time **Access keys** - [ ] Permission matrix view (keys x buckets) - [ ] Key rotation helper - [ ] Copy-ready snippets per key (aws-cli, rclone, restic, s3cmd, mc, Terraform) **Cluster** - [X] Support Garage v1 to latest - [ ] Visual layout editor with staged vs. applied diff - [ ] Capacity planner / simulation - [ ] Rebalance progress and node health timeline - [ ] Worker/repair panel (trigger scrub, repair, rebalance) **Observability** - [ ] Dashboard with dedup/compression savings - [ ] Metrics explorer pulling from Garage `/metrics` - [ ] Admin audit log **Polish** - [ ] i18n (FR/EN) - [ ] Mobile-friendly object browser - [ ] First-run onboarding wizard - [ ] GitOps export (layout + buckets + keys as YAML) ## License MIT - see [LICENSE](LICENSE) ## Links - [Issues](https://github.com/Noooste/garage-ui/issues) - [Contributing](CONTRIBUTING.md) - [Garage Docs](https://garagehq.deuxfleurs.fr/documentation/)
